Depth Filter Nominal

Length: 50 Micron Rating: 75

Our 75 micron, 50 inch absolute nominal cartridge is a nominally rated filter cartridge with 4 layer graded depth filtration, giving exceptional dirt holding capacity combined with high removal efficiency and low pressure drops.

100% Polypropylene construction with no additives or adhesives mean that our filter cartridges meet FDA requirements for food and beverage contact, and ensure compatibility with most chemical processes.

Standard size elements are available from 20” to 50” long and can be supplied with a range of thermally welded end caps.

Box Quantity: 20

Please take care to select the appropriate end caps before ordering. Terms and conditions apply.

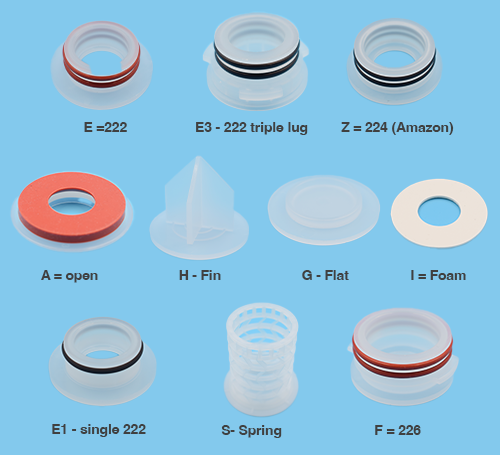

None V = Viton T = FEP S = Silicone N = Nitrte
E = EPDM
£240.00 ex VAT
£240.00 ex VAT
This product is currently sold out.

Features & Benefits

  • 100% Polypropylene construction, minimal extractables and broad chemical compatibility.
  • Contains no resins, binders or adhesives, materials conform to 21 CFR part 177.
  • Four layer graded density, true depth filtration giving high dirt holding capacity and long service life.
  • Meltblown construction, no fibre migration.
  • Full range of thermally welded end caps, retrofits available for most applications.
  • Automated manufacturing process, consistent performance and efficiency.

Recommended Operating Conditions

Recommended Differential Pressure @ 20°C 2 bar
Maximum Differential Pressure @ 20°C 3.5 bar
Maximum Differential Pressure @ 60°C 1 bar

Dimensions

Outside Diameter: 63mm
Inside Diameter: 28mm
Length: 50”
Micron Rating: 75
Box Quantity: 20"
