Depth Filter Absolute

Length: 4 7/8 Micron Rating: 3

Our 3 micron, 4 7/8 inch absolute filter cartridge is an absolute rated depth filter cartridge with graded depth filtration, available in Nylon or Polypropylene to suit a range of applications.

Available in a range of Beta Ratio 5000 Absolute micron grades, from 1 to 100. 100% Polypropylene or Nylon construction with no additives or adhesives mean that our filter cartridges meet FDA requirements for food and beverage contact, and ensure compati

Standard size elements are available from 4 7/8” to 50” long and can be supplied with a range of thermally welded end caps.

Box Quantity: 100

Please take care to select the appropriate end caps before ordering. Terms and conditions apply.

None V = Viton T = FEP S = Silicone
N = Nitrte
E = EPDM
£600.00 ex VAT
£600.00 ex VAT
This product is currently sold out.

Features & Benefits

  • Beta Ratio 5000 absolute micron ratings to ensure consistent performance.
  • 100% Polypropylene construction, minimal extractables and broad chemical compatibility.
  • Four layer graded density, true depth filtration giving high dirt holding capacity and long service life.
  • Meltblown construction, no fibre migration.

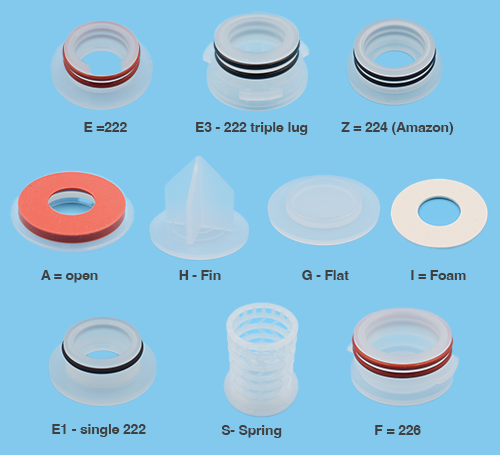

  • Full range of thermally welded end caps, retrofits available for most applications.
  • Automated manufacturing process, consistent performance and efficiency.

Recommended Operating Conditions

Recommended Differential Pressure @ 20°C 2 bar
Maximum Differential Pressure @ 20°C 3.5 bar
Maximum Differential Pressure @ 60°C 1 bar

Dimensions

Outside Diameter: 63mm
Inside Diameter: 28mm
Length: 4 7/8”
Micron Rating: 3
Box Quantity: 100"
