Absolute Pleated Filter

Length: 5 Micron Rating: 0.45

Our 5"" pleated filter cartridge, with a 0.45 micron rating is available with a wide range endcap styles. It will retrofit into the majority of competitor housing styles without the need for modification.

The Trade Water Filters range of pleated polypropylene filter cartridges are constructed from 100% polypropylene hardware & filtration media ensuring broad chemical compatibility. Thermally bonded construction gives minimal extractable levels, making them ideal for clarification and prefiltration of a wide range of products.

It is suited equally to industrial and F&B applications Absolute Micron Ratings, Beta 5000 (99.98%) efficiency, tested using industry-standard single pass OSU-F2 test procedure with ISO 12103 part 1 A2 Fine and A4 Coarse test dust as appropriate.

Box Quantity: 10

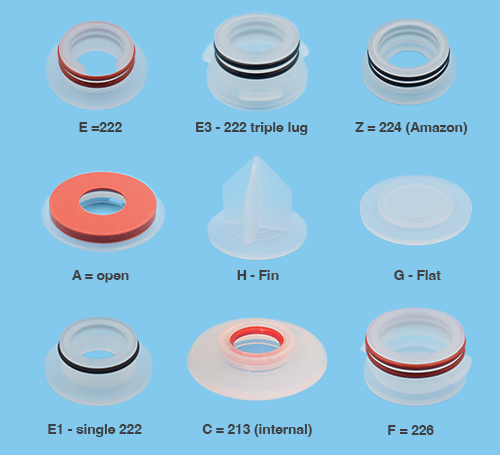

Please take care to select the appropriate end caps before ordering. Terms and conditions apply.

V = Viton T = FEP S = Silicone N = Nitrte
E = EPDM
£453.00 ex VAT
£453.00 ex VAT
This product is currently sold out.

Operating Conditions

Forward Flow 4 bar dP @ 20 Degrees Celsius
2.8 bar dP @ 65 Degrees Celsius
1 bar @ 80 Degrees Celsius
Reverse Flow 3 bar dP @ 20 Degrees Celsius

Dimensions

Outside Diameter 69mm
Inside Diameter up to 32mm
Length 5”
Micron Rating 0.45
Box Quantity 10

Sanitisation

Steam & Autoclave 135 Degrees Celsius for 15 min
Hot Water Sanitisation 90 Degrees Celsius for 30 min

Features and Benefits

  • Absolute micron ratings (99.98% removal) ensure consistent performance
  • Individually lot numbered for full product traceability
  • Manufactured in the UK which allows for quick lead times
  • EC1935:2004 Compliant allowing use in Food & Beverage applications
  • Conformance to FDA 21CFR part 177 and USP Plastics Class VI
  • Large surface area of up to 0.8m2 per 10” module extending life and ensuring low clean pressure loss
  • 100% Polypropylene construction and thermal bonded construction eliminated the need for adhesives and achieves minimal levels of extractables
  • Can be repeatedly steam sterilised (with optional steam ring end cap option), autoclave sterilised or hot water"
